BUTTWELD ELBOWS SCH40 90 DEG L/R ASTM A234 WPB
$1.68 – $242.78
Description

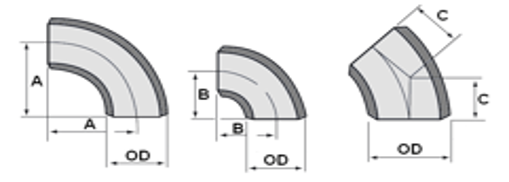

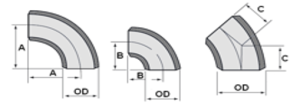

| Nominal Pipe Size DN | Outside Diameter at Bevel | Long Radius Elbow | Short Radius Elbow | |
| 90 Deg | 45 Deg | 90 Deg | ||
| OD | A | C | B | |
| 15 | 21.3 | 38.1 | 15.7 | – |
| 20 | 26.7 | 28.4 | 11.2 | – |
| 25 | 33.5 | 38.1 | 22.4 | 25.4 |
| 32 | 42.2 | 47.8 | 25.4 | 31.8 |
| 40 | 48.3 | 57.2 | 28.4 | 38.1 |
| 50 | 60.5 | 76.2 | 35.1 | 50.8 |
| 65 | 73.2 | 95.2 | 44.4 | 63.5 |
| 80 | 88.9 | 114.3 | 50.8 | 76.2 |
| 100 | 114.3 | 152.4 | 63.5 | 101.6 |
| 125 | 141.2 | 190.5 | Deg | 127 |
| 150 | 168.1 | 228.6 | 95.2 | 152.4 |
| 200 | 218.9 | 304.8 | 127 | 203.2 |
| 250 | 273 | 381 | 158.8 | 254 |
Additional information
| Weight | N/A |
|---|---|
| Size | 15MM 90 L/R BUTTWELD ELBOW, 20MM 90 L/R BUTTWELD ELBOW, 25MM 90 L/R BUTTWELD ELBOW, 32MM 90 L/R BUTTWELD ELBOW, 40MM 90 L/R BUTTWELD ELBOW, 50MM 90 L/R BUTTWELD ELBOW, 65MM 90 L/R BUTTWELD ELBOW, 80MM 90 L/R BUTTWELD ELBOW, 90MM 90 L/R BUTTWELD ELBOW, 100MM 90 L/R BUTTWELD ELBOW, 125MM 90 L/R BUTTWELD ELBOW, 150MM 90 L/R BUTTWELD ELBOW, 200MM 90 L/R BUTTWELD ELBOW, 250MM 90 L/R BUTTWELD ELBOW |
